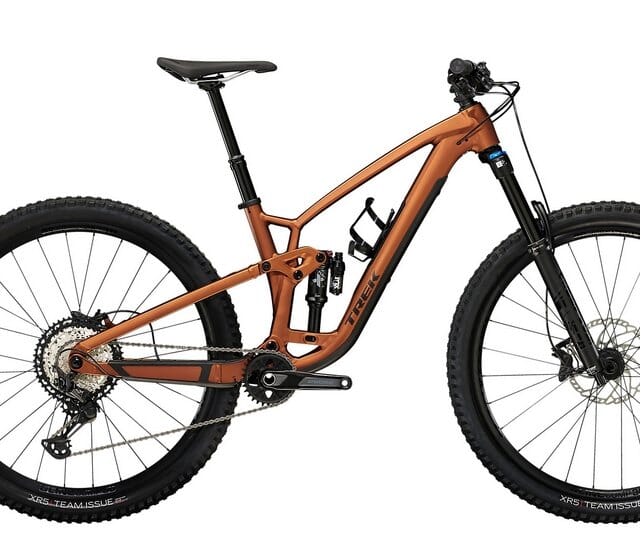

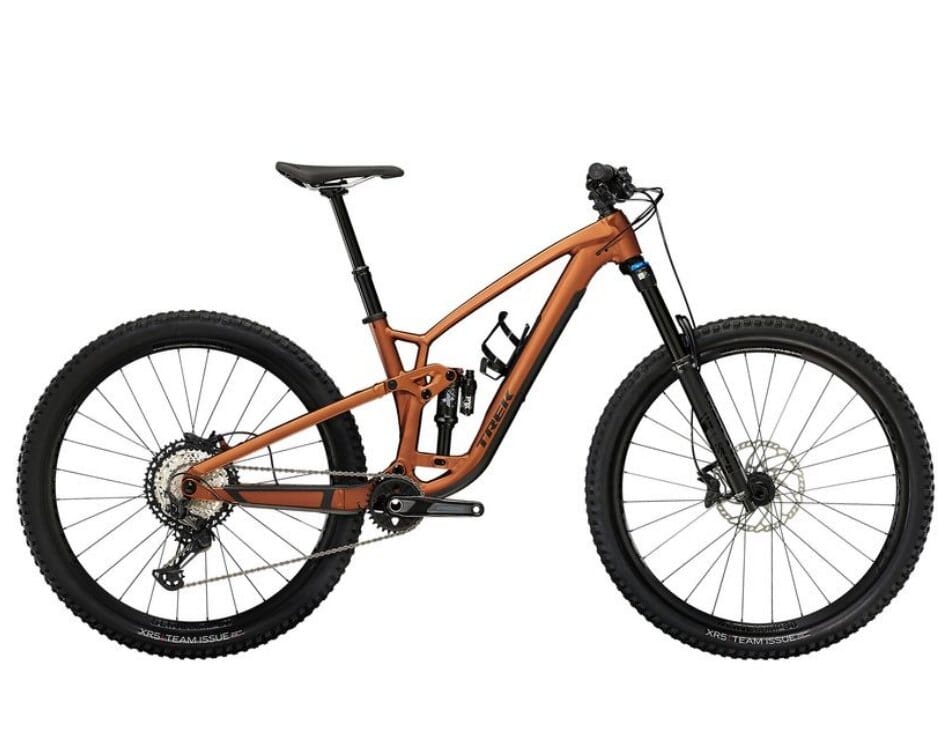

2023 Trek Fuel EX 8 XT full suspension mountain bike
Colour - Copper Orange
Size - 29 inch wheels
All bicycle purchases must be collected instore
The Fuel EX 8 is a dialled trail bike for riders who chase down rowdy descents and want a bike that's happy to pedal back to the top and do it again. It has a stout alloy frame and an upgraded Shimano XT drivetrain for smooth precise shifting. The 150 mm Fox Rhythm fork makes easy work of rocks and roots while the Fox Float X shock keeps you in control. New in-frame storage and adjustable geometry give you all the perks that come with the carbon model but at a lower price point.
| Frame | Alpha Platinum Aluminium, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel |
|---|---|
| *Fork | Size: XS , S Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 140 mm travel |
| Size: S , M , ML , L , XL , XXL Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel |
|
| Shock | Fox Performance Float X, 2-position damper, 185 mm x 55 mm |
| Wheel front | Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle |
|---|---|
| *Wheel rear | Size: XS , S Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Boost148, 12 mm thru axle |
| Size: S , M , ML , L , XL , XXL Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle |
|
| Hub front | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
| *Hub rear | Size: XS , S Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12 mm thru axle |
| Size: XS , S Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle |
|
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Rim | Bontrager Line Comp 30, Tubeless Ready |
| *Tyre | Size: XS , S Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 27.5x2.50" |
| Size: S , M , ML , L , XL , XXL Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29x2.50" |
|
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Shifter | Shimano XT M8100, 12-speed |
|---|---|
| Rear derailleur | Shimano XT M8100, long cage |
| Chain | Shimano SLX M7100, 12-speed |
| Saddle | Bontrager Arvada, hollow chromoly rails, 138 mm width |
|---|---|
| *Seatpost | Size: XS , S TranzX JD-YSP39, 100 mm travel, internal routing, 34.9 mm |
| Size: M , ML TranzX JD-YSP39, 150 mm travel, internal routing, 34.9 mm |
|
| Size: L , XL , XXL TranzX JD-YSP39, 170 mm travel, internal routing, 34.9 mm |
|
| *Handlebar | Size: XS , S Bontrager Line, alloy, 35 mm, 27.5 mm rise, 750 mm width |
| Size: M , ML , L , XL , XXL Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width |
|
| Grips | Bontrager XR Trail Elite, nylon lock-on |
| *Stem | Size: XS , S Bontrager Elite, 35 mm, 0-degree, 35 mm length |
| Size: M , ML , L , XL , XXL Bontrager Elite, 35 mm, 0-degree, 45 mm length |
|
| Head set | Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible |
| Brake | Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper |
| *Brake rotor | Size: XS , S , M , ML , L , XL , XXL Shimano RT66, 6-bolt, 180mm |
| Size: XS , S , M , ML , L , XL , XXL Shimano RT66, 6-bolt, 203 mm |
| Weight | M – 15.65 kg/34.51 lb (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
