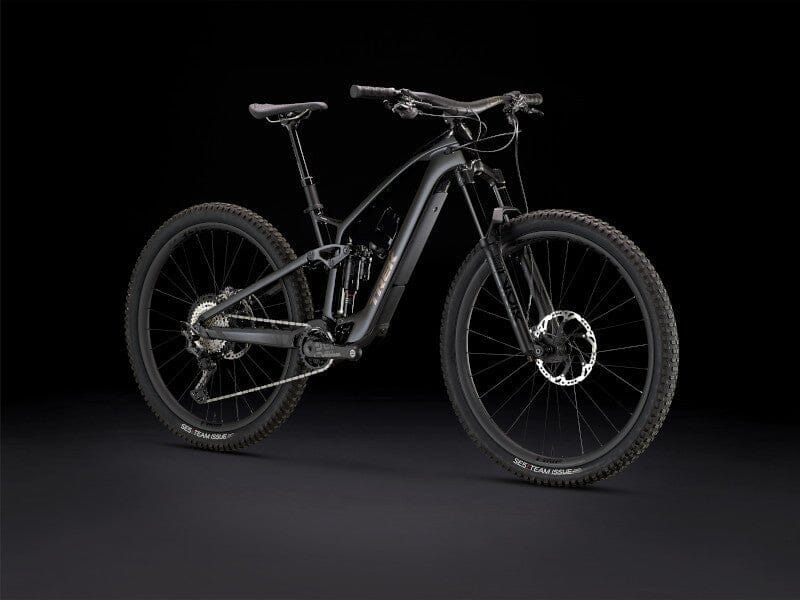

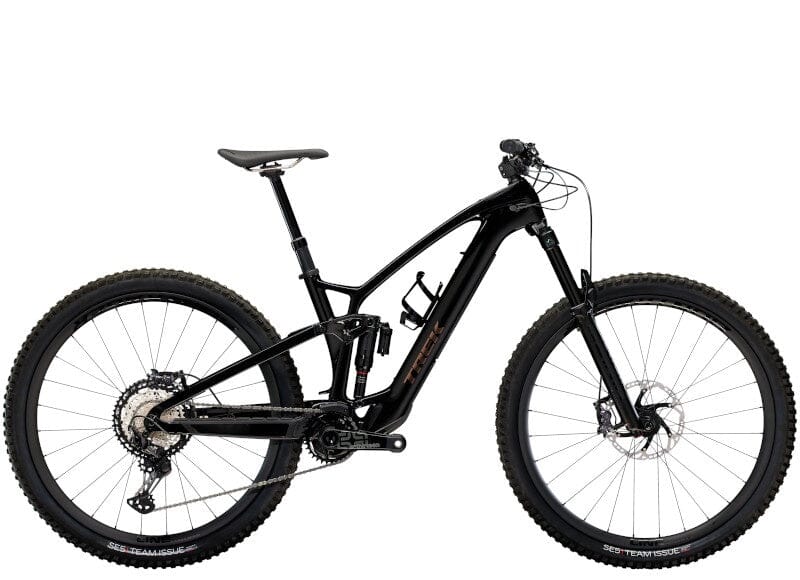

2023 Trek Fuel ExE 9.8 XT
Colour - Black
All bicycle purchases must be collected instore
The Fuel EXe 9.8 XT is a new breed of mountain bike that brings nearly invisible power to the trail in an e-package that's compact and adapts to your riding. It's fully loaded with a tiny-but-mighty TQ transmission that gives you assist when you need it but disappears for a true trail bike feel on descents. A carbon fibre frame keeps your ride light and responsive, and an upgraded RockShox suspension package pairs with Shimano XT shifting to finish the build with the perfect balance of performance and price.
|Frame||OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel|
|Fork||RockShox Lyrik Select+, DebonAir spring, Charger 2.1 RC damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel|
|Shock||RockShox Super Deluxe Select+ RT, 205mm x 60mm|
|Max compatible fork travel||160mm (575mm axle-to-crown)|
|Wheel front||Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle|
|Wheel rear||Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless-Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle|
|Hub front||Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle|
|Skewer rear||Bontrager Switch thru-axle, removable lever|
|Tyre||Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"|
|Tyre part||Bontrager TLR sealant, 180 ml/6 oz|
|Max tyre size||Frame: 29x2.50", Fork: See manufacturer|
|Shifter||Shimano XT M8100, 12-speed|
|Rear derailleur||Shimano XT M8100, long cage|
|Crank||E*thirteen E*spec Race carbon, 165 mm length|
|Chainring||E*thirteen E*spec, 32T alloy ring, 55 mm chainline|
|Cassette||Shimano XT M8100, 10-51, 12-speed|
|Chain||Shimano Ultegra/XT M8100, 12-speed|
|Max. chainring size||1x: 34T, min 30T|
|Saddle||Bontrager Arvada, austenite rails, 138 mm width|
Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 34.9 mm, 345 mm length
Bontrager Line Elite Dropper, 150 mm travel, MaxFlow, internal routing, 34.9 mm, 440 mm length
Bontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 485 mm length
Bontrager Line Elite Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 550 mm length
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 35 mm stem length
Size: M, L, XL
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45mm stem length
|Grips||Bontrager XR Trail Elite, nylon lock-on|
|Brake||Shimano XT M8120 4-piston hydraulic disc|
|Brake rotor||Shimano RT76, 6-bolt, 203 mm|
|Rotor size||Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer|
|Weight||M - 18.10 kg / 39.91 lbs (with TLR sealant, no tubes)|
|Weight limit||This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).|
Due to warranty and supply agreements, all bicycles must be collected from one of our stores.
Note: we also do free setup on all new bikes so allow a bit of extra time (approx. 20 minutes) when you are collecting the bike for us to get it dialled in for you.
