2023 Trek Rail 7 Gen 2 Charcoal Black

Trek SKU: 20032
2023 Trek Rail 7 Gen 2 Charcoal Black Bikes Trek S
2023 Trek Rail 7 Gen 2 Charcoal Black Bikes Trek
2023 Trek Rail 7 Gen 2 Charcoal Black Bikes Trek
2023 Trek Rail 7 Gen 2 Charcoal Black Bikes Trek
2023 Trek Rail 7 Gen 2 Charcoal Black Bikes Trek
2023 Trek Rail 7 Gen 2 Charcoal Black Bikes Trek
2023 Trek Rail 7 Gen 2 Charcoal Black Bikes Trek

2023 Trek Rail 7 Gen 2 Charcoal Black

Trek SKU: 20032
Size
Regular price $9,999.00 Sale price $8,499.00 Save $1,500
/
Available instore at:
loading..
  • Secure online payments
Tax included. Shipping calculated at checkout.

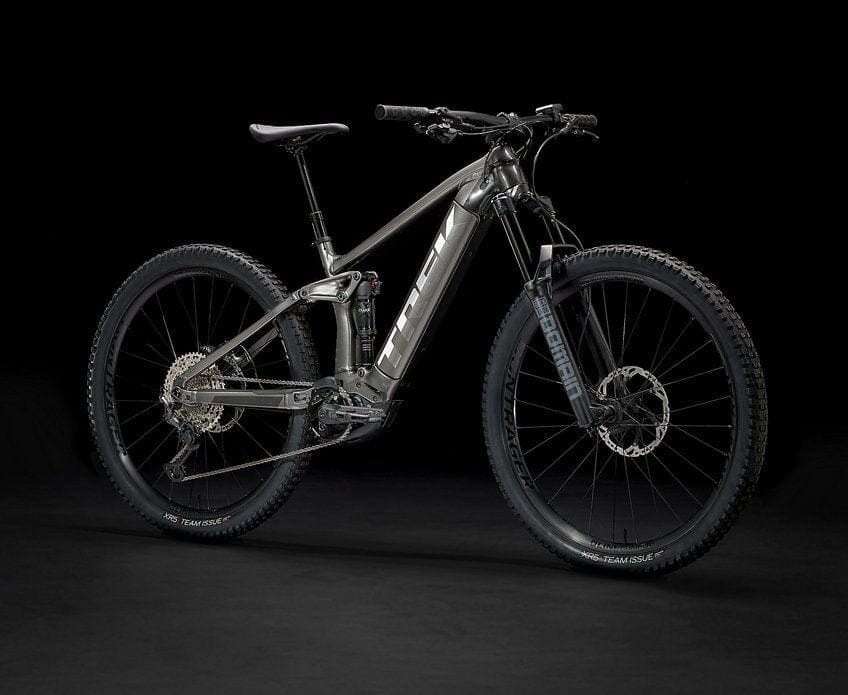

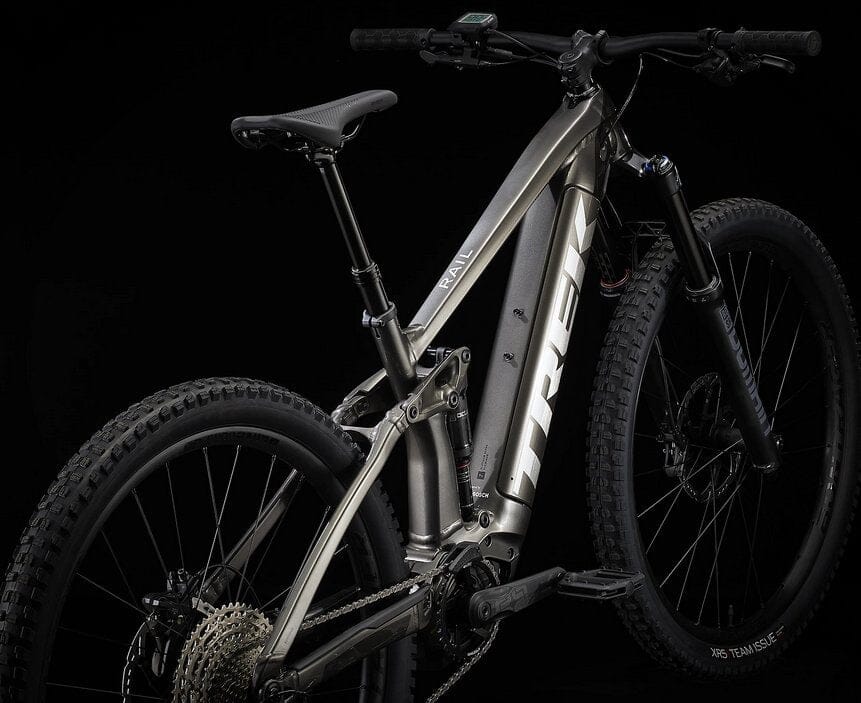

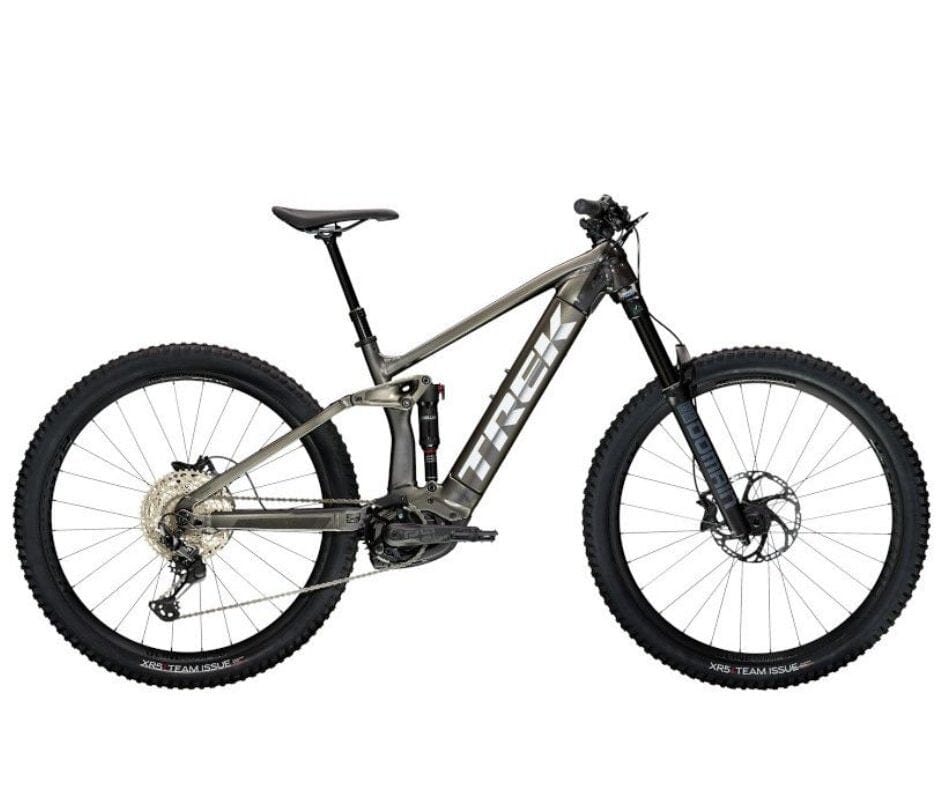

2023 Trek Rail 7 Gen 2 full suspension electric mountain bike

Colour - Dinister Black / Mercury Grey

All bicycle purchases must be collected instore

Rail 7 is a long-travel electric mountain bike built for riding the big stuff. It features the same high-end trail tech as our analogue trail bikes, an upgraded fork, drivetrain, battery and more, plus a powerful Bosch drive system that's basically like having your own shuttle. Uphill, enduro, cross country trails, mountain bike parks, rail trails and gravel rides, you'll be able to challenge yourself and enjoy your ride.

Features Shimano 12 speed drivetrain, 160mm front/150mm rear of suspension travel, TranzX Dropper seatpost, Shimano 4 piston brakes, 625 w/h battery, and a Bosch Performance Line CX motor with magnesium motor body, 85 Nm of torque, max assist 32 km/h.

Frame Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
Fork RockShox Domain RC, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel

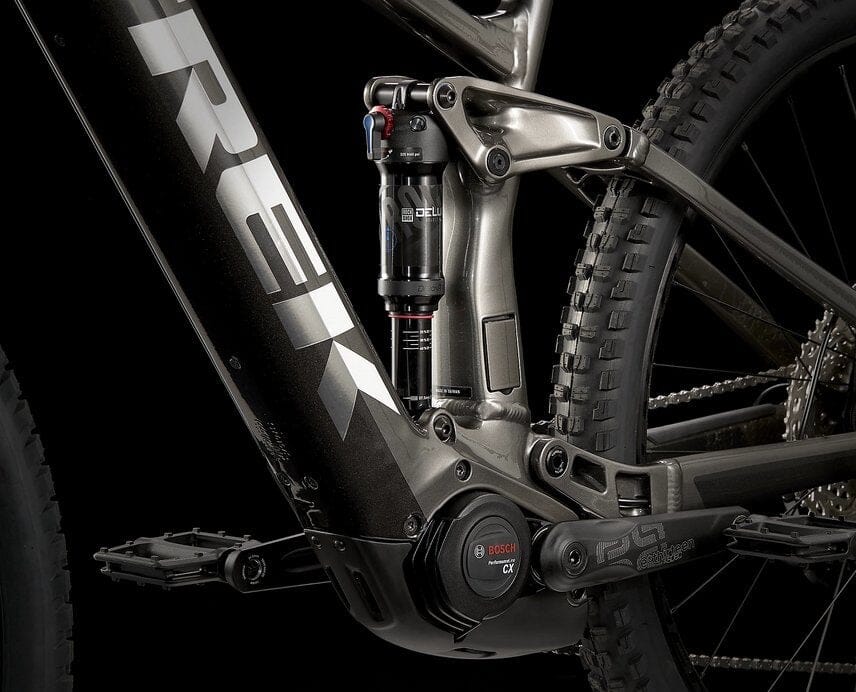

Shock RockShox Deluxe Select+, 230 mm x 57.5 mm
Max compatible fork travel 170mm (580mm axle-to-crown)
Wheels
Wheel front Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Wheel rear Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle
Skewer rear Bontrager Switch thru-axle, removable lever
*Tyre Size: S, M, L, XL
Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29x2.50"
Size: S, M, L, XL
Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.60"
Tyre part Bontrager TLR sealant, 180 ml/6 oz
Rim strip Bontrager TLR
Max tyre size Frame: 29x2.60" Fork: See manufacturer
Drivetrain
Shifter Shimano SLX M7100, 12-speed

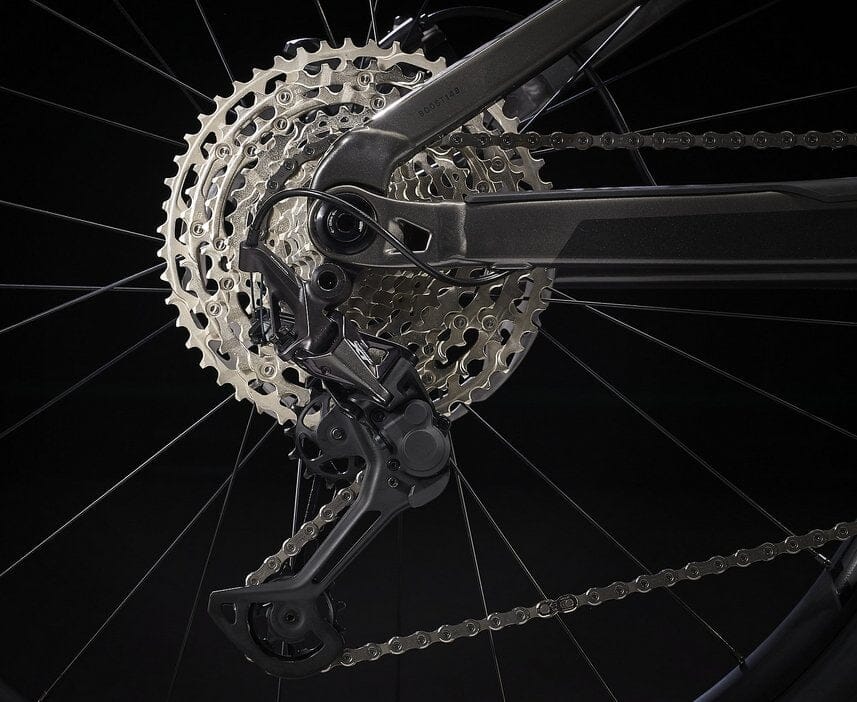

Rear derailleur Shimano XT M8100, long cage
Crank E*thirteen E*spec Plus, 165 mm length
Chainring E*thirteen, 34T, steel
Cassette Shimano Deore M6100, 10-51, 12-speed
Chain Shimano SLX M7100, 12-speed
Pedal VP-536 nylon platform
Max. chainring size 34T
Components
Saddle Bontrager Arvada, steel rails, 138 mm width
*Seatpost Size: S
TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Size: M, L, XL
TranzX JD-YSP18, 150mm travel, internal routing, 31.6 mm, 470mm length
Handlebar Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 780mm width
Grips Bontrager XR Trail Comp, nylon lock-on
Stem Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
Head set Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom
Brake Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper
Brake rotor Shimano RT76, 6-bolt, 203 mm
Accessories
Charger Bosch standard 4A, 220–240V

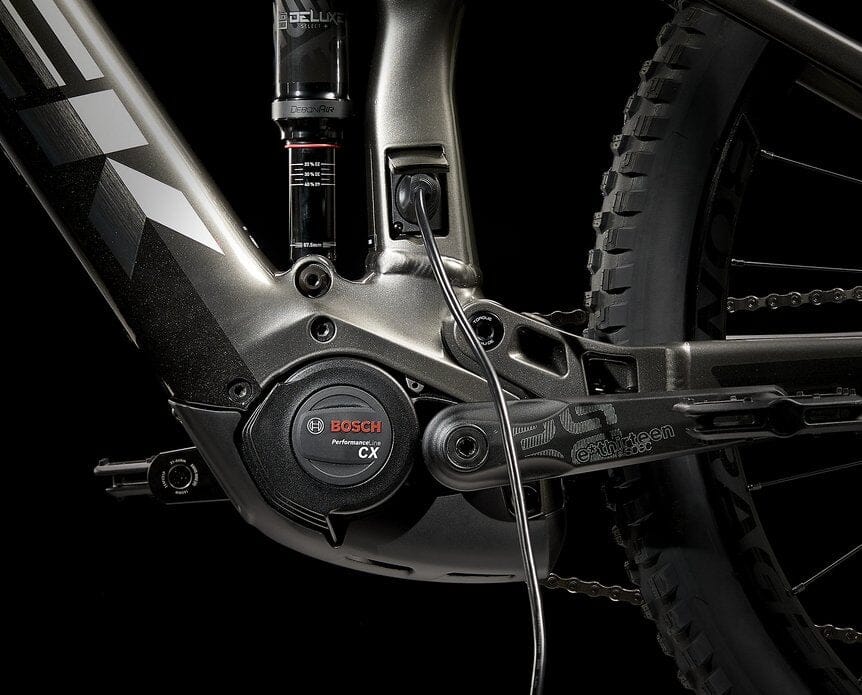

Motor Bosch Performance Line CX, magnesium motor body, 85 Nm, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand

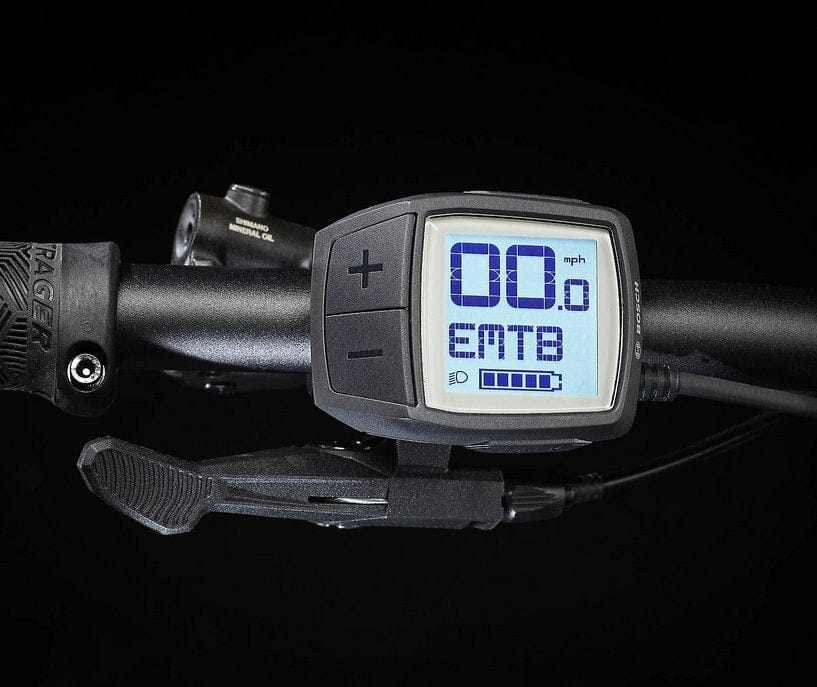

Computer Bosch Purion
Weight
Weight M - 24.01 kg / 52.94 lbs (with TLR sealant, no tubes)
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
Size Rider Height Inseam
S

153 - 167 cm

5'0" - 5'6"

72 - 79 cm

28" - 31"

M

161 - 175 cm

5'3" - 5'9"

76 - 82 cm

30" - 32"

L

174 - 188 cm

5'9" - 6'2"

82 - 88 cm

32" - 35"

XL

186 - 196 cm

6'1" - 6'5"

87 - 92 cm

34" - 36"
