2023 Pivot Shuttle SL Pro X01

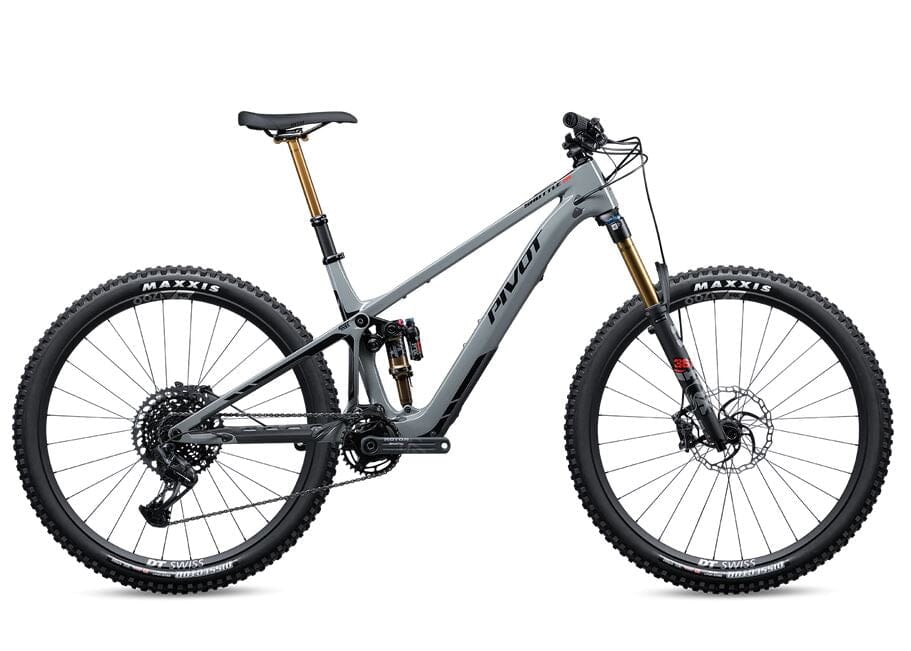

2023 Pivot Shuttle SL Pro X01 Bikes Pivot S Desert Sage Green

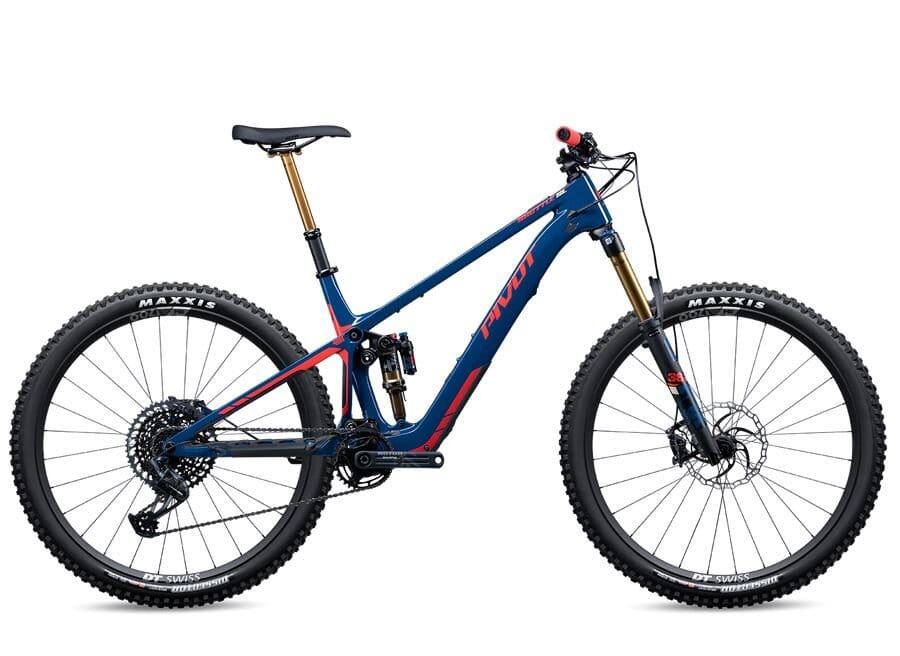

2023 Pivot Shuttle SL Pro X01 Bikes Pivot S Denim Blue

2023 Pivot Shuttle SL Pro X01

Regular price $21,995.00
/
Size
Colour
Tax included. Shipping calculated at checkout.
  • Secure online payments

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Product Inventory
loading..
  • All bikes are collect in store only. Auckland delivery available by arrangement
  • Free bike setup for all new bikes
  • Free 4 week safety check on all bikes.

2023 Pivot Shuttle SL Pro X01 spec

The all new full suspension carbon fibre super light electric mountain bike

Colours - Denim Blue or Desert Sage Green

Pivot's proprietary carbon fiber construction is integral to the Shuttle SL's light weight and taut handling. The dw-link suspension kinematics are perfectly adapted to provide plush compliance and efficient pedaling, lots of pop for dynamic riding, and enough progression to swallow high speed big hits

• Sleek Full Carbon Hollow Core Frame
• Seamless Integrated FAZUA Ride 60 Drive System
• Progressive Trail Geometry
• Flip Chip Geometry Customization
• Size Specific Chainstay Lengths
• 130mm Travel DW-Link Suspension
• Trunnion Mounted Float X
• 150mm Fox 36 Grip 2 with custom eMTB Tune
• Trail gripping Maxxis Dissector Tires
• Full-size water bottle fits inside the front triangle
• Pivot's Cable Port System
• 60 Nm of Torque/ 450 Watts Peak Power
• Integrated 430 Watt/Hour Battery
• Superlight System 9.25lbs (4.2kg)
• 3 Assist Levels + Boost Mode
• Drag-free pedaling without assist
• Magnetic Charging Port & Cover
• World Cup Build starting at 36.9 pounds (sub 17kg)

REAR SHOCK





Fox Factory Float X





FORK





Fox Factory E-MTB 36 29”, 44mm offset, GRIP2 - 150mm





HEADSET





Pivot Precision Sealed Cartridge





REAR DERAILLEUR





Sram X01 Eagle 12-Speed





SHIFTER





Sram X01 Eagle 12-Speed





CASETTE





Sram XG-1275 10-52t





CHAIN





KMC X12 12-Speed





CRANK SET





ROTOR EKAPIC E-MTB 34t





BRAKES





Shimano XT M8120 4-piston





ROTORS





F - Galfer Rotor 203mm | R - Galfer Rotor 180mm





DRIVE UNIT





FAZUA RIDE 60





HANDLEBAR





Phoenix Team Low Rise Carbon -780mm





GRIPS





Phoenix Factory Lock-On





STEM





Phoenix Team Enduro/Trail





SEATPOST





Fox Transfer Factory Series 150mm (SM), 175mm (MD-LG), 200mm (XL)





SADDLE





Fox Transfer Factory Series 150mm (SM), 175mm (MD-LG), 200mm (XL)





WHEELS





DT Swiss XM1700 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 29” / 15x110 F/12x157 R





TYRES





F - Maxxis Dissector 29” x 2.4” WT, TR, 3C, EXO, MAXXTERRA

R - Maxxis Dissector 29” x 2.4” WT, TR, 3C, EXO, MAXXTERRA
